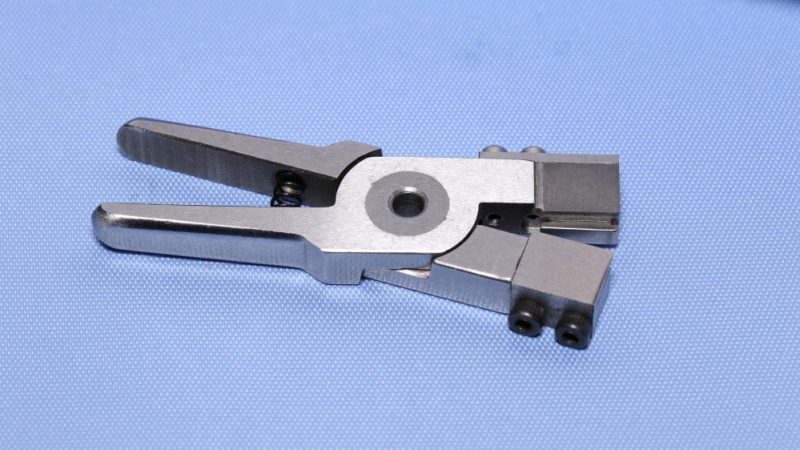

Description:

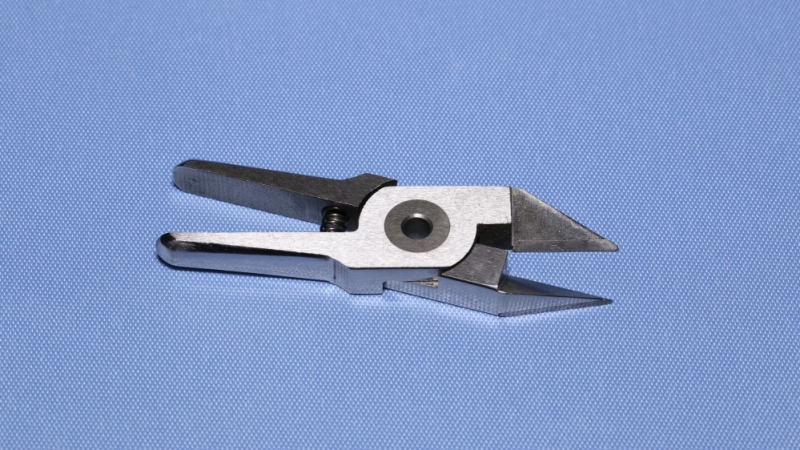

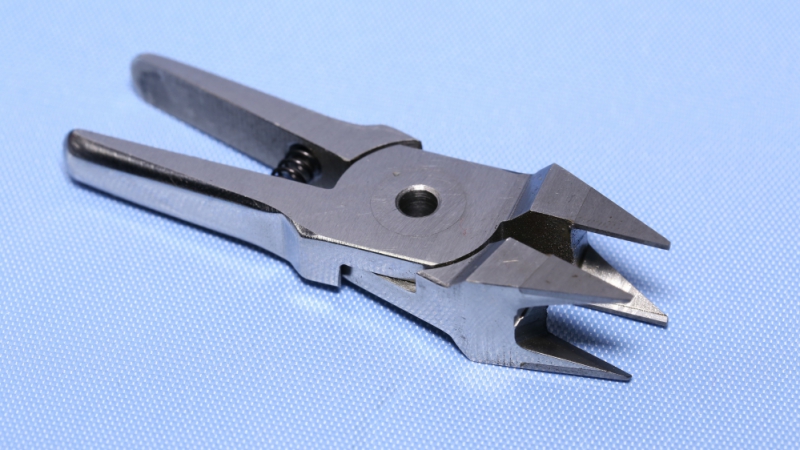

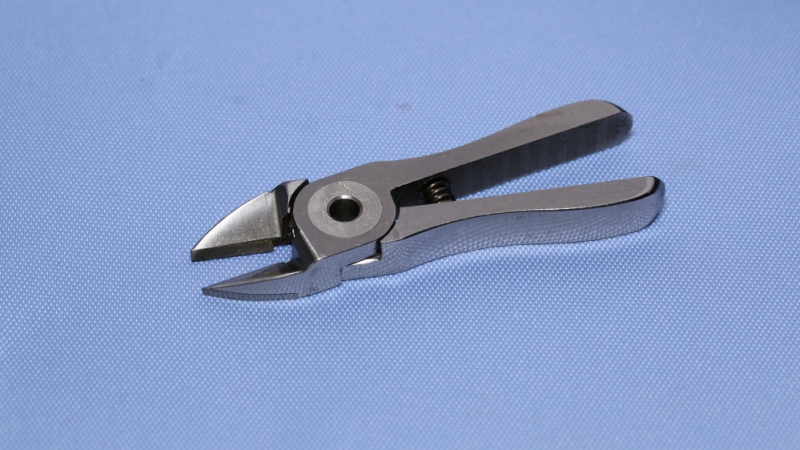

The air nipper blades can be matched with the air nipper body to create a full air nipper for use on an automatic winding machine. This machine is then used for the cutting of enameled copper wires, transformer pins, soft wire, iron wire and more.

Features:

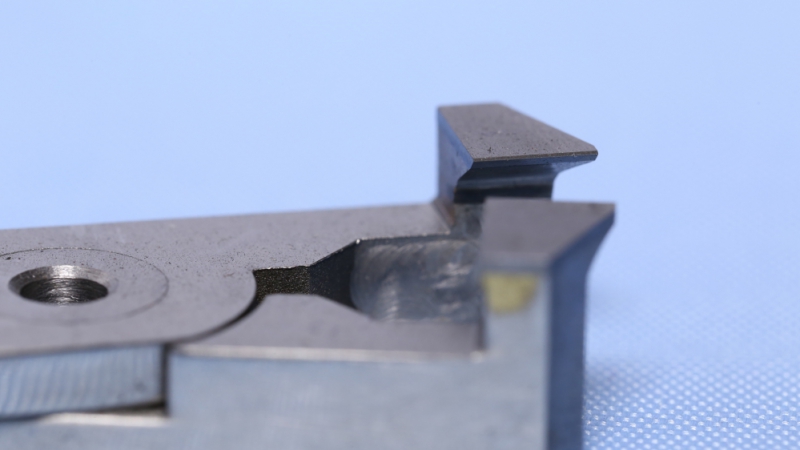

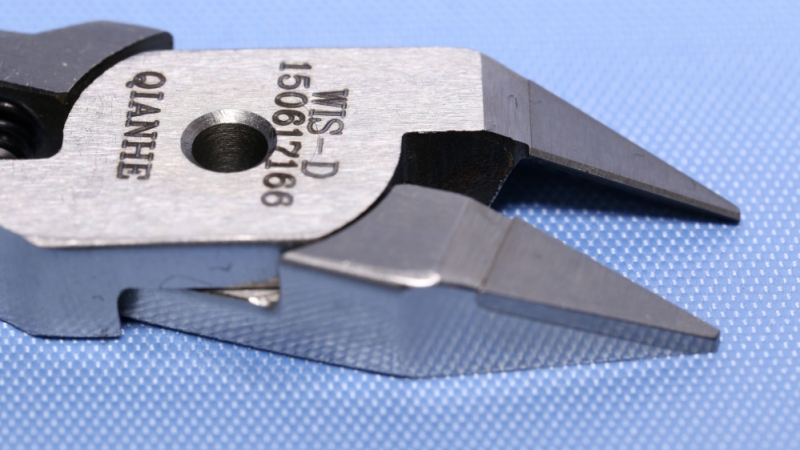

1. The edge of the air nipper blade is plated with a layer of tungsten steel so that the edge is extremely wear resistant. The service life of the middle section of the blade edge is more than 1 million uses.
2. The base material of the hilt is made of a superior alloy steel via forging and forming. The intensity is improved through a heat treatment process, and it is then manufactured using a fine machining and riveting process.
3. The working air pressure of the air nipper ranges between 0.4mpa-1.2mpa.
4. The normal edged part of the air nipper is 3.8mm-4.2mm. Am air nipper edge with special specifications can be customized according to customer requirements.

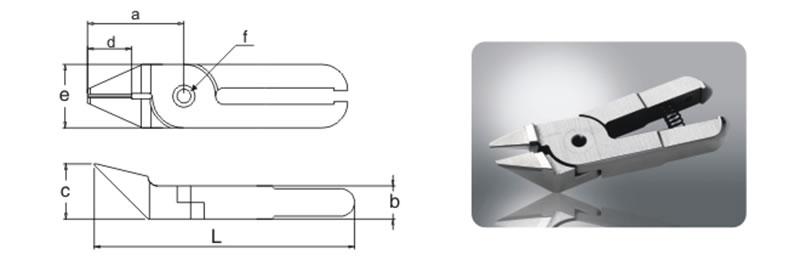

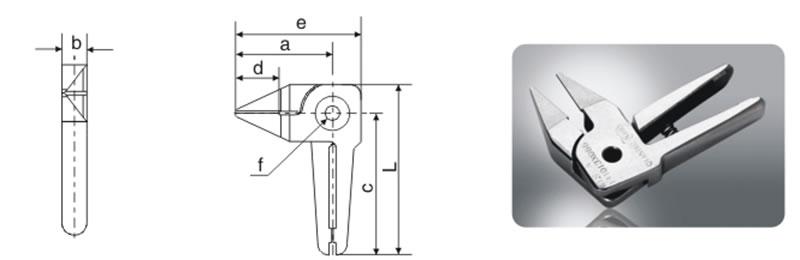

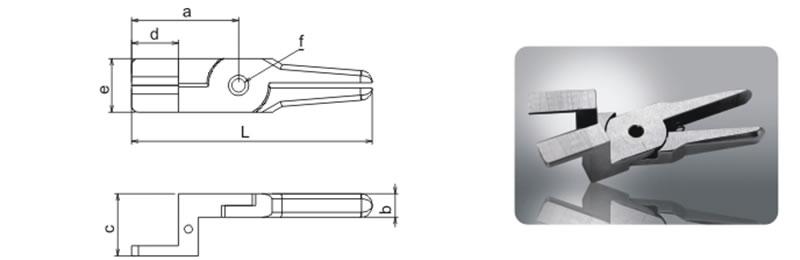

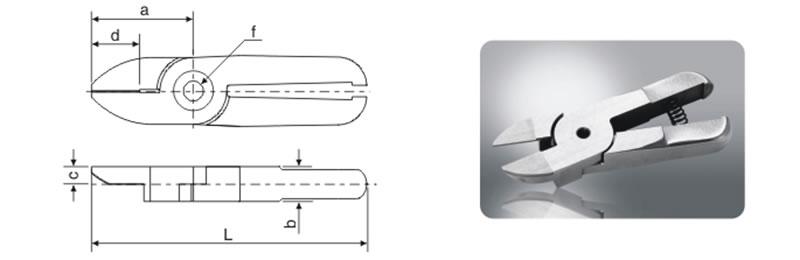

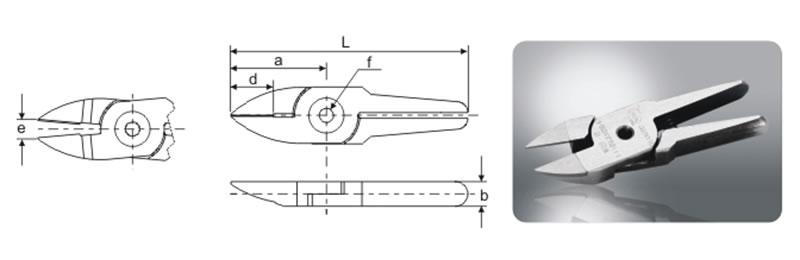

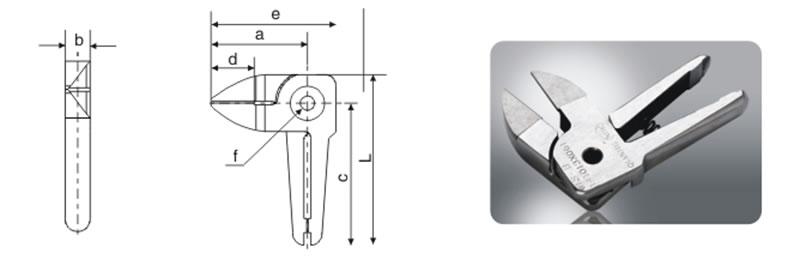

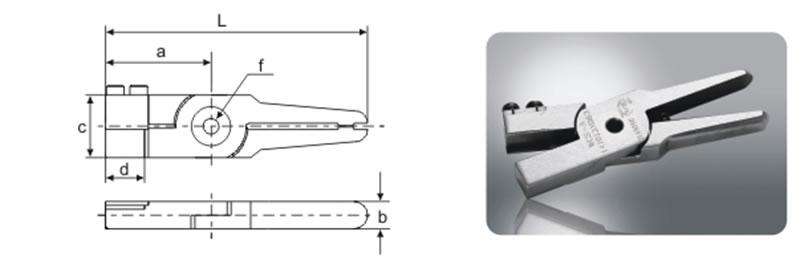

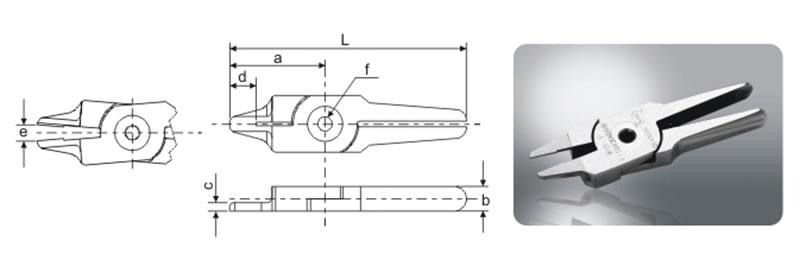

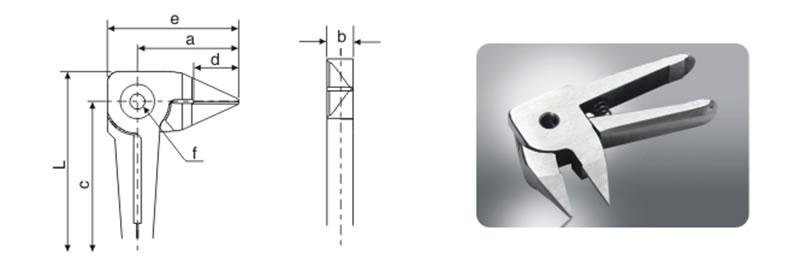

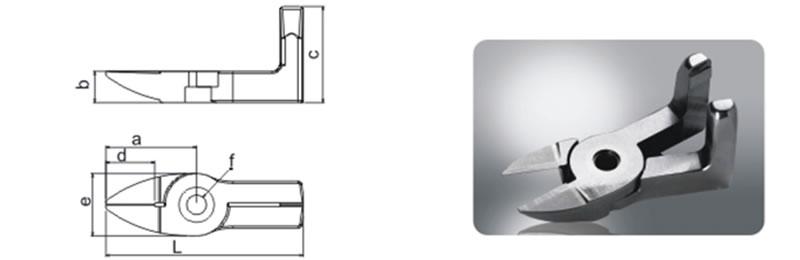

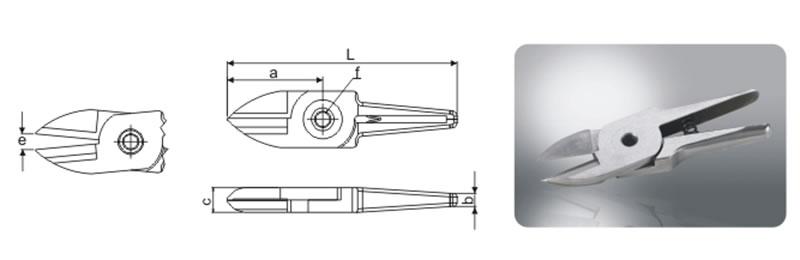

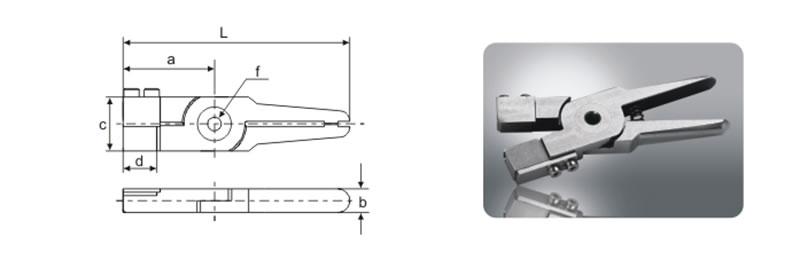

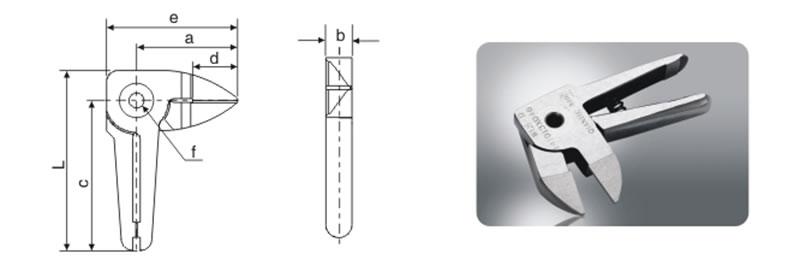

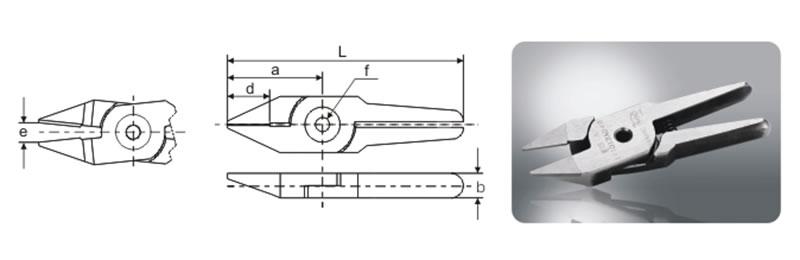

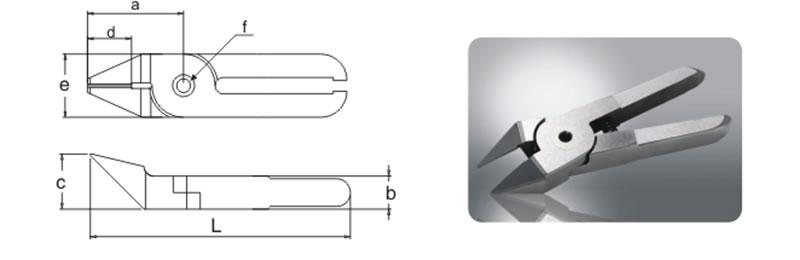

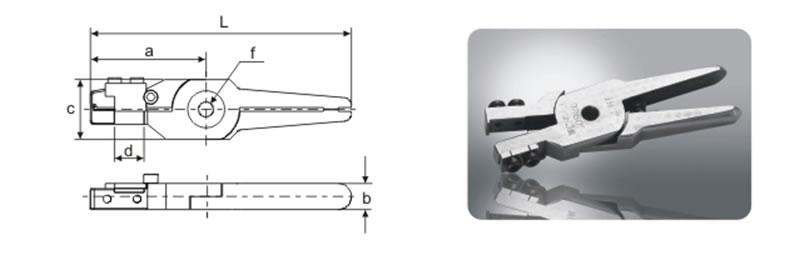

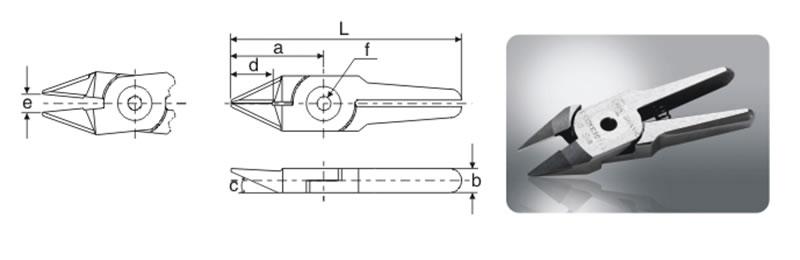

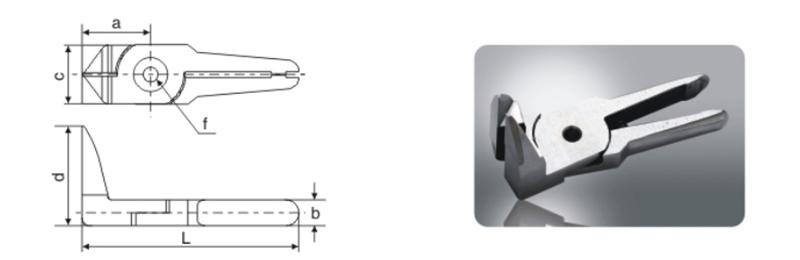

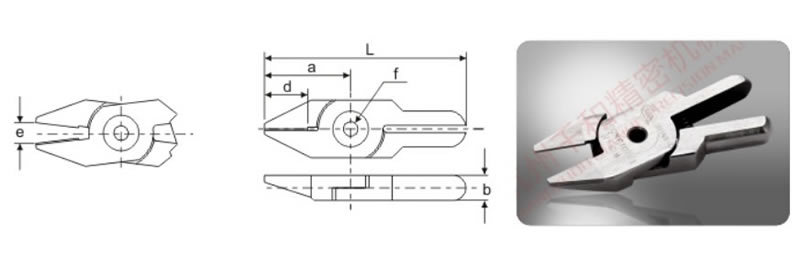

Specification adaptation table
The following air nipper blades of different specifications can be matched with air nipper body body in a variety of different specifications. Qinghe also offers air nipper blades in specialized shapes according to customer requirements.

You should note that the cutting performance of different types of air nipper blades are different, so do not use them for overload cutting.
