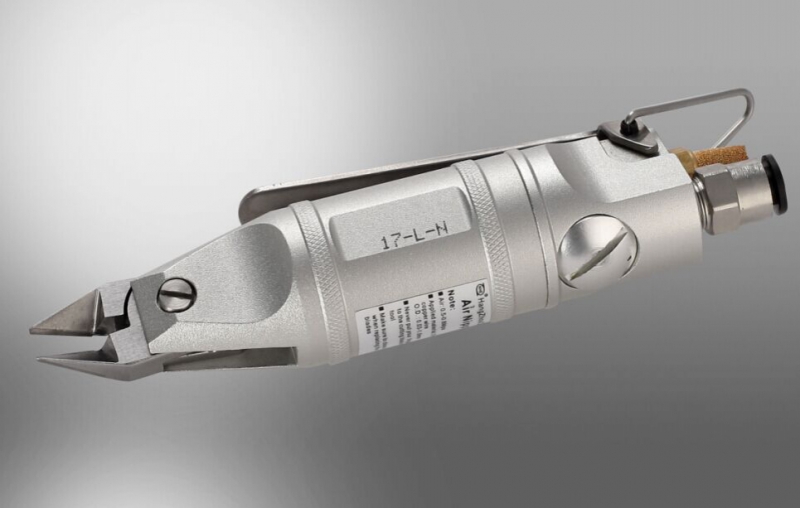

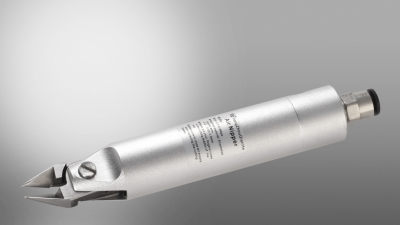

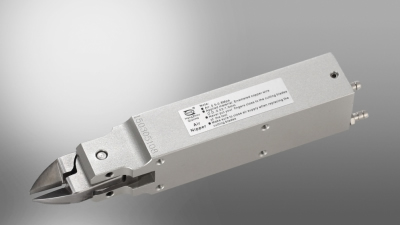

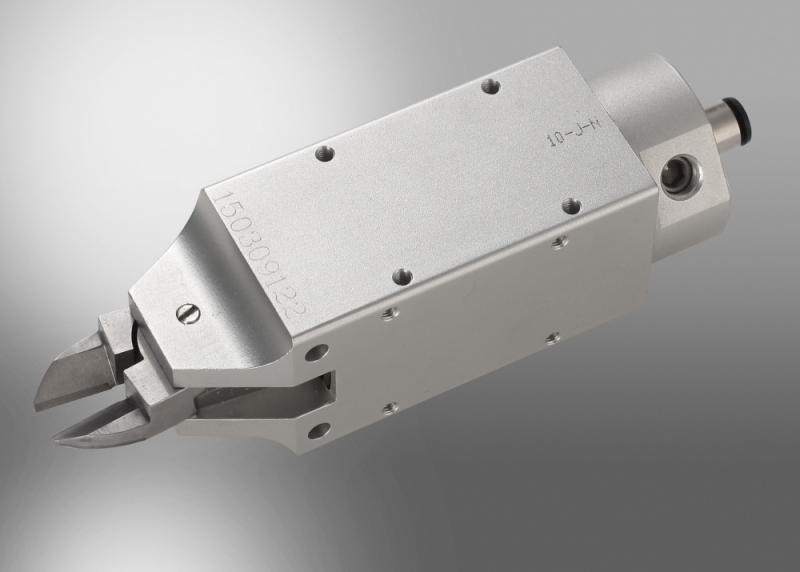

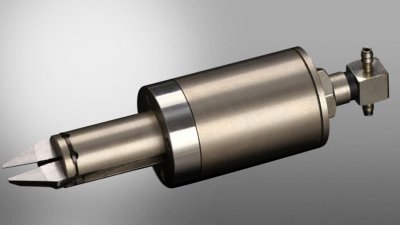

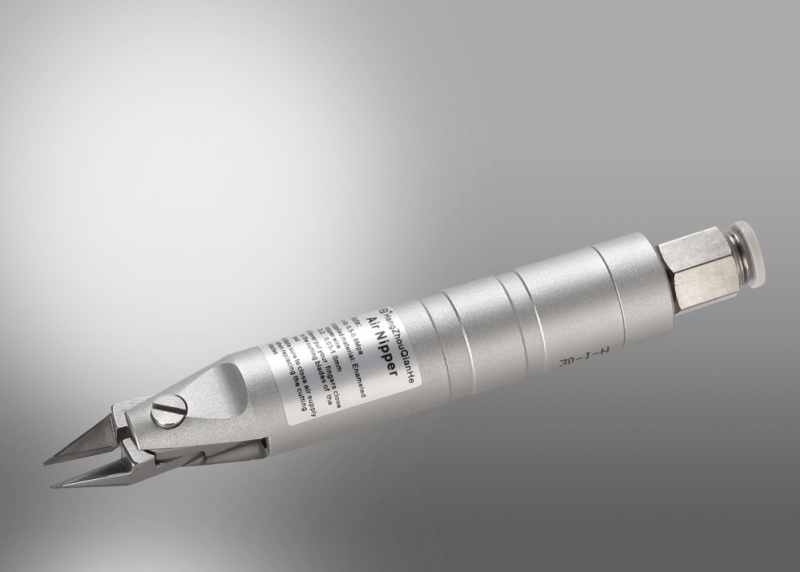

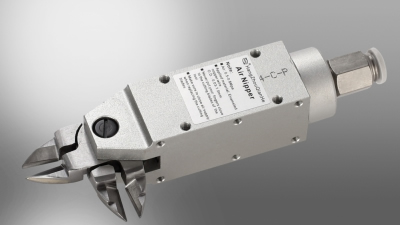

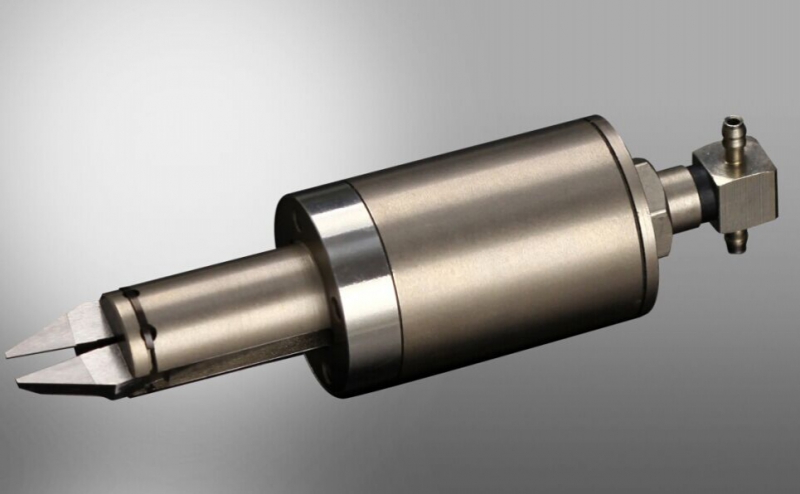

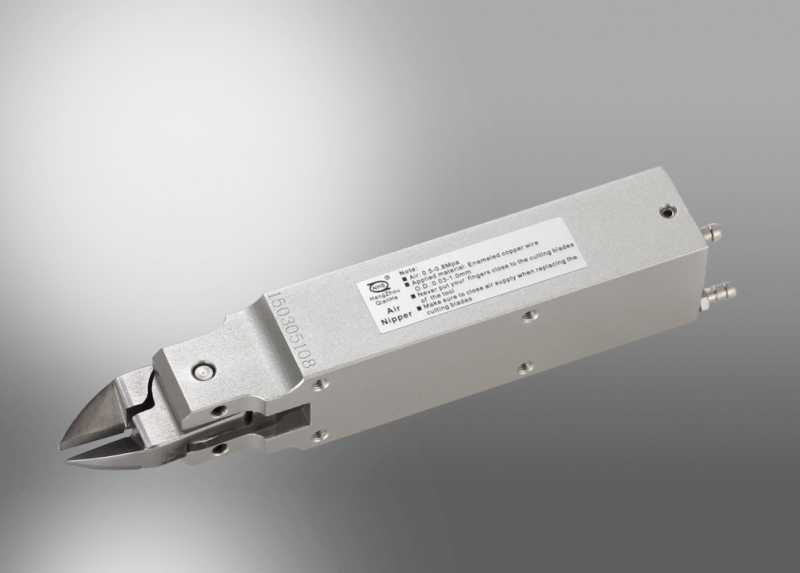

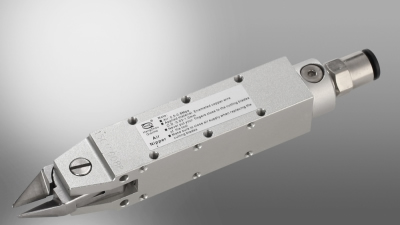

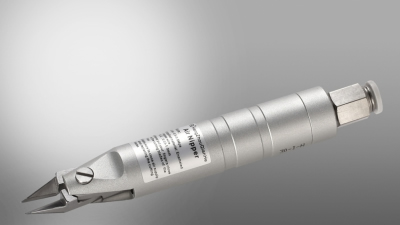

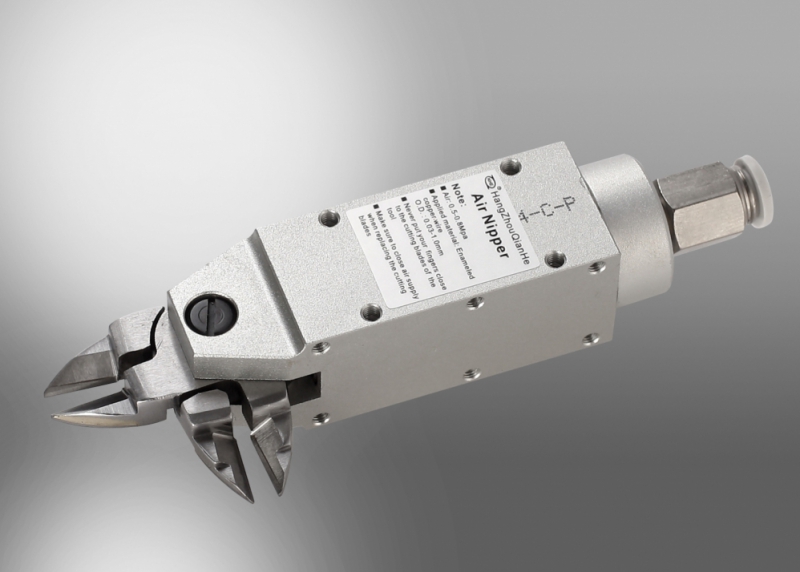

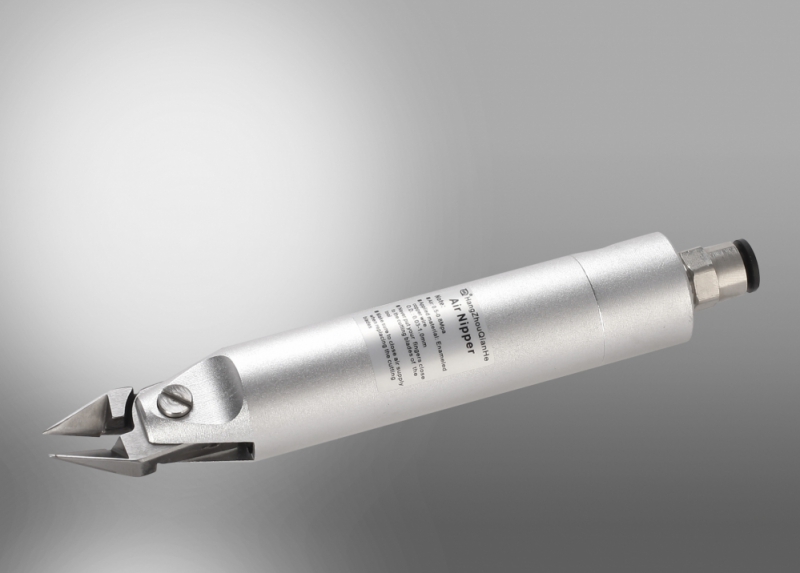

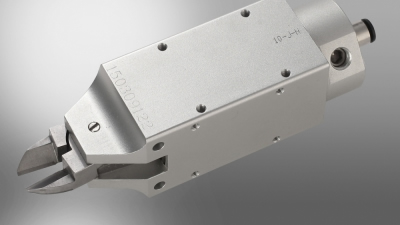

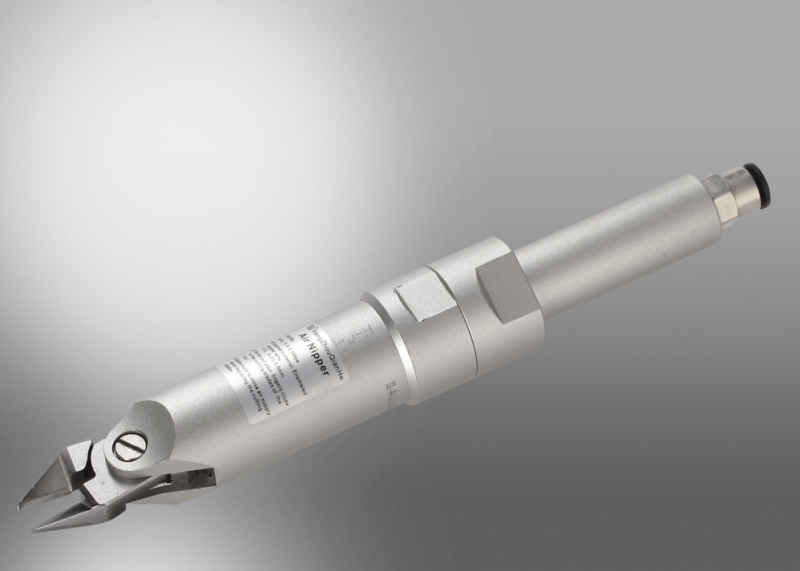

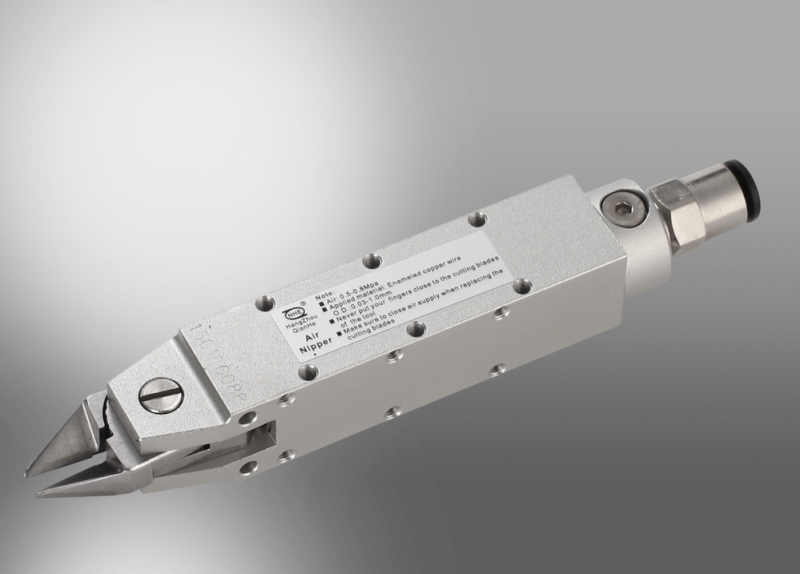

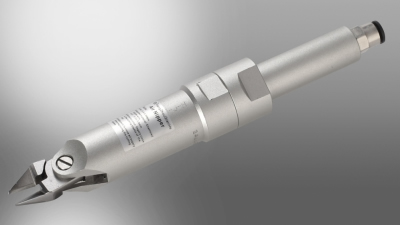

Air Nipper Body

Description
The air nipper body should be matched with the air nipper blades, and is used for automatic wire cutting when the coil winding is complete. A full air nipper is used for the cutting of enameled copper wire, pin transformers, plastics and more.

The surface of the air nipper body is hardened so that it will not be easily scratched, thus ensuring the service life. For example, if the threaded hole on the air nipper body is quite short, thanks to the hardness, the screws will not become loose during installation.

Optional specification

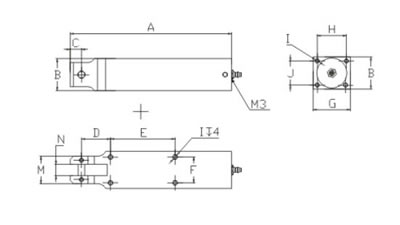

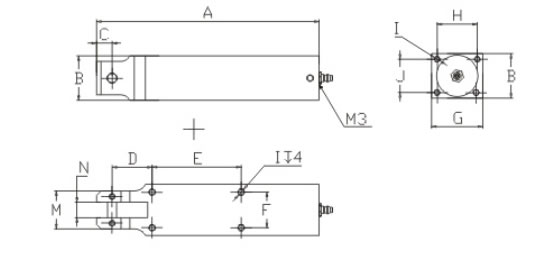

CS10 air nipper body
Size(mm) Weight(g)
A B C D E F G H I J M N
100 20 7 18 40 16 23 18 M3 15 17 7 80

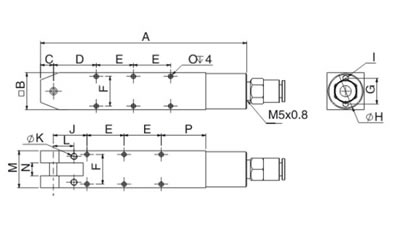

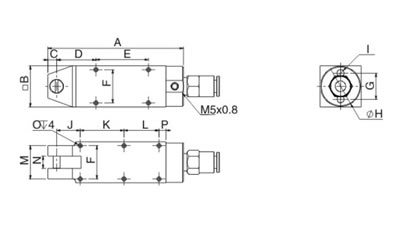

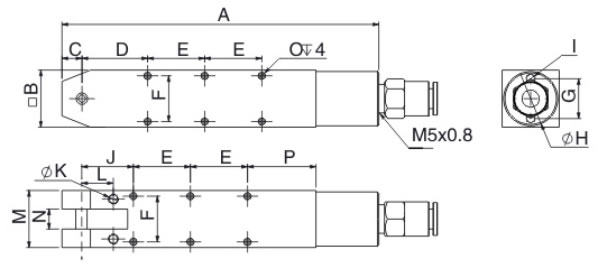

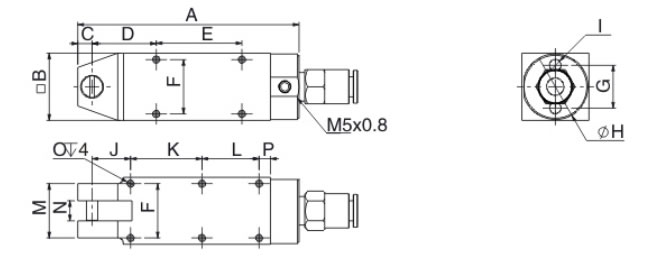

C20 air nipper body
Size(mm) Weight(g)
A B C D E F G H I J K L M N O P
77.5 23.5 5 22.5 30 19 15 23 φ4 13.5 25 20 19 7 M3 4 76
C25 air nipper body
Size(mm) Weight(g)
A B C D E F G H I J K L M N O P
99 20 7 23 20 16 14 19.5 M3 18 3 11 20 7 M3 24 70

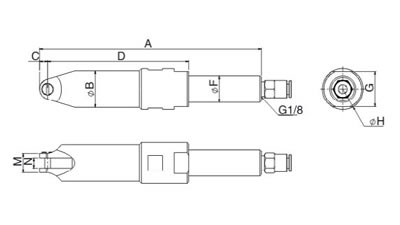

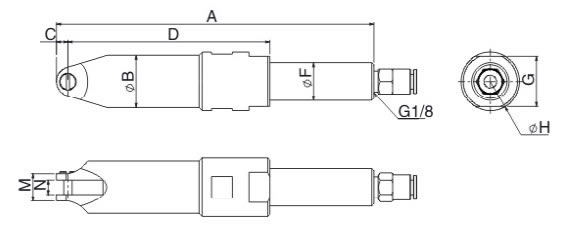

C30 air nipper body
Size(mm) Weight(g)
A B C D F G H M N
153 25 5.5 97 18 24 28 13.1 7 98

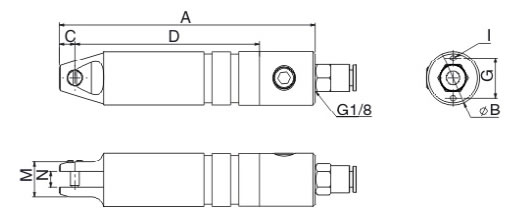

C40 air nipper body
Size(mm) Weight(g)
A B C D G I M N
115 24 7 89 18 M3 14.5 7 76
C45 air nipper body
Size(mm) Weight(g)
A B C D E F G H I J K M N O P
129 45 9 41 40 36 30 44 M5 36 40 26 12 M4 24 412

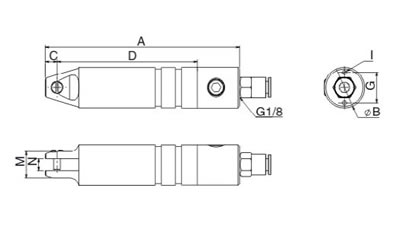

C50 air nipper body
Size(mm) Weight(g)
A B C D G I M N
99 20 7 82 14 M3 14 7 48
CS5 air nipper body
Size(mm) Weight(g)
A B C D E F K M N P
38.5 39 9 25 3 8 13 25 19 2.4 144
TS-5 manual air nipper body

Specification adaptation table
Air nipper bodies in a variety of specifications can be paired with air nipper blades in a variety of specifications. The air nipper blade edge is made of a special tungsten steel. Do not use it for overload cutting.

Air nipper type Adaptable blade specification Cutting ability(Φmm)
Copper wire Iron wire Soft wire
CS10 WIS-A,B,D,F,G;WLS/WCS series 0.02-1.0 0.02-0.50 0.02-2.0
C20 WIS-A,B,D,F,G;WLS/WCS series 0.02-1.0 0.02-0.50 0.02-2.0
C30 WIS-A,B,D,F,G;WLS/WCS series 0.02-1.0 0.02-0.50 0.02-2.0
C40 WIS-A,B,D,F,G;WLS/WCS series 0.02-1.0 0.02-0.50 0.02-2.0
C25 WIS-E 0.02-1.0 0.02-0.5 0.02-2.0
C50 WIS-E2 0.02-1.0 0.02-0.5 0.02-2.0
CS-5 -- 0.02-0.5 -- --
C45 WIB series(A,B,C) 0.10-2.5 0.1-1.5 0.1-3.0
C30F WIS-A,B,D,F,G;WLS/WCS series 0.02-1.3 0.02-0.8 0.02-2.5
TS-5 manual air nipper body WIS-A,B,D,F,G;WLS/WCS series 0.02-1.0 0.02-0.50 0.02-2.0
